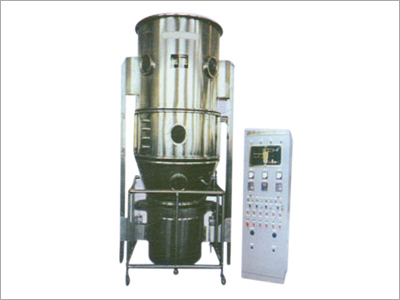

Flames Fluid Bed Dryer

Flames Fluid Bed Dryer
Flames Fluid Bed Dryer
Product Code : 06
Brand Name : FLAMES
Product Description
Flame Fluid Bed Dryers
  • 100% S.S. Constructions
  • GMP Standards for latest
  • Pharmaceuticals Drying
  • Capacities 10kg/Hr 200 Kgs/HR
  • Lowest Energy Cost.

SPECIFICATION



Model No: FBD 10/30/60/120/150/200/250/300 Kgs

Detailed Product Description
The Eqipment is used for the efficient drying of pharmaceutical, Chemical, food,
dye stuff and Polymer Industry Products.

OPERATION
The atmospheric Air is drawn in through 5 micron filter with the help of specially designed Heavy duty fan. Foltered Ait then heated to the desired
temperature by electric heaters / steam radiators. The Hot air passes through the product container charged with product gets Airfluidisation. The Filter bag
prevents fine particles form carrying over top exhaust AIr systems.

SALIENT FEATURES
  • All contact parts will be SS 316.
  • Product container, Perforated AIr distributor plate and retarding chamber are made of SS 316.
  • Heater ar eelectrically operated with thermostatic control and made in SS 304 tube and fans.
  • Electrical inter locing system for lifting the bowl.
  • Pneumatic system for lifting the bowl.
  • Vision Panel in toughened glass both on the bowl and retarding chamber.
SPECIAL FEATURES
  • Lasser drying time heance better productivity.
  • Uniform drying.
  • Electric or steam operation.
  • Compact design.
TECHNICAL SPECIFICATIONS
Model: FBD 10 Kgs:
Capacity of SS container in Litres: 35
Motor H. P. : 1. 5
Heating Capacity K. W.: 6
Heating Capacity Kcal / HR: 3650
Steam consumption KG / HR. At 3 KG. Cm2 pressure: 14
Approx. Dimention (Height) mm: 1550
Approx. Dimention (Width) mm: 750
Approx. Dimention (Length) mm: 650

Model: FBD 30 Kgs
Capacity of SS container in Litres: 100
Motor H. P. : 5
Heating Capacity K. W.: 18
Heating Capacity Kcal / HR: 11200
Steam consumption KG / HR. At 3 KG. Cm2 pressure: 25
Approx. Dimention (Height) mm: 2200
Approx. Dimention (Width) mm: 1025
Approx. Dimention (Length) mm: 1400

Model: FBD 60 Kgs
Capacity of SS container in Litres: 215
Motor H. P. : 10
Heating Capacity K. W.: 36
Heating Capacity Kcal / HR: 21600
Steam consumption KG / HR. At 3 KG. Cm2 pressure: 50
Approx. Dimention (Height) mm: 2650
Approx. Dimention (Width) mm: 1200
Approx. Dimention (Length) mm: 1600

Model: FBD 120 Kgs
Capacity of SS container in Litres: 415
Motor H. P. : 15
Heating Capacity K. W.: *54
Heating Capacity Kcal / HR: 75000
Steam consumption KG / HR. At 3 KG. Cm2 pressure: 100
Approx. Dimention (Height) mm: 3000
Approx. Dimention (Width) mm: 1550
Approx. Dimention (Length) mm: 1900

Model: FBD 150 Kgs
Capacity of SS container in Litres: 500
Motor H. P. : 20
Heating Capacity K. W.: *
Heating Capacity Kcal / HR: 52100
Steam consumption KG / HR. At 3 KG. Cm2 pressure: 150
Approx. Dimention (Height) mm: 3200
Approx. Dimention (Width) mm: 1700
Approx. Dimention (Length) mm: 2000

Model: FBD 200 Kgs
Capacity of SS container in Litres: 650
Motor H. P. : 20
Heating Capacity K. W.: *
Heating Capacity Kcal / HR: 74000
Steam consumption KG / HR. At 3 KG. Cm2 pressure: 175
Approx. Dimention (Height) mm: 3400
Approx. Dimention (Width) mm: 1850
Approx. Dimention (Length) mm: 2150

Model: FBD 250 Kgs
Capacity of SS container in Litres: 780
Motor H. P. : 25
Heating Capacity K. W.: *
Heating Capacity Kcal / HR: 77500
Steam consumption KG / HR. At 3 KG. Cm2 pressure: 200
Approx. Dimention (Height) mm: 3500
Approx. Dimention (Width) mm: 1900
Approx. Dimention (Length) mm: 2250

Model: FBD 300 Kgs

Capacity of SS container in Litres: 950
Motor H. P. : 30
Heating Capacity K. W.: *
Heating Capacity Kcal / HR: 91500
Steam consumption KG / HR. At 3 KG. Cm2 pressure: 250
Approx. Dimention (Height) mm: 3600
Approx. Dimention (Width) mm: 1950
Approx. Dimention (Length) mm: 2350
