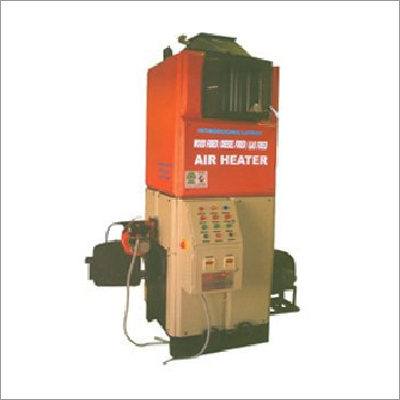

Triple Pass Air Heater

Triple Pass Air Heater
Triple Pass Air Heater
Product Code : 19
Product Description
Triple Pass Air Heater

Our valuable clients can avail high performance 3 Pass Air Heaters, which consumes less fuel. These are available up to 300 degree Celsius air temperature models. Following are some specifications about our product:

Features
  • Outer covering with powder coated panel for brilliant aesthetics
  • Easy disposal of ash by swivel base plate with handles
  • Rugged construction for longer life
  • Choice of fuel in all the seasons for easy availability and price
  • Cast Iron specially designed grate bar for firing various types of fuel
  • Easy to clean and self cleaning of heat exchanger duel to vertical design
  • Patented three pass air heaters for low fuel consumption
  • Models available up to 300 Degree Celsius air temperature
  • New ergonomically designed powder coated electrical panels
Advantages
  • Savings all the time you use
  • Easy maintenance and higher efficiency
  • Profits from waste in these difficult times

Technical Specifications

Description

Unit

FLW-50

FLW-100

FLW-150

FLWC-200

Heat Output

Kcal/hr
KWS

50000
58

100000
116

150000
174

200000
232

Hot Air Temperature

oC

80/150/250

80/150/250

80/150/250

80/150/250

Process Air Flow AT STP
(1.2 KG/M3 Air Density)

m3/hr

3500/1460

7000/2920

10500/4380

14000/5040

Temperature Rise

oC

50/120

50/120

50/120

50/120

Thermal Efficiency


75% + 2%

75% + 2%

75% + 2%

75% + 2%

Fuel Consumption
Max. @ 3500 KCal / Kg.

Kg. / hr.

18 kg.

36 kg

54 kg

72 kg

Electric Supply

50Hz 3 Phase 4 Wire

Electric Load

HP

3

5

7.5

10

Temperature Control

ON - Off Type

Dimensions (mm)

W

800mm

1200mm

1500mm

1750mm

L

800mm

1200mm

1500mm

1750mm

H

2600mm

3100mm

3100mm

3300mm
